Vacuum Trucks
DOT Industrial Tank Systems
LoneStar can equip you with vacuum trucks designed to be in full compliance with the Department of Transportation’s DOT407/412 specification.
Design shall withstand 35-PSI internal pressure and 15 PSIG external pressure (full vacuum) and shall meet all the requirements of Section VIII Division 1 of the A.S.M.E. Boiler and Pressure Code. National Board Registered. Tank to be designed and constructed in full compliance with Department of Transportation Specification DOT407/412.
Features
Tank diameter 72″ steel constructed vacuum tank
1/4″ wall, SA-516-70
Hydrostatic test 46 PSI
100% welded interior and exterior
All welds are X-rayed
(2) Interior baffles
(2) External reinforcement rings
Tombstone style rollover protection – 3″ OD pipe
Operation temperature – 20*F at 35 PSI – 200*F
SS Girard pressure vent 35 PSGI mounted on top of tank
Single 12″ primary shut off with ball and cage at front of tank
(2) 20″ top Manways
(1) 20″ rear Manway
(2) External ladders (1 per manway)
Gauge style level indicator sealed in rear tank
(2) 4″ Betts manual section/discharge valves with Dixon quick connects and caps
Air operated butterfly insolation valve with PTO interconnect
Secondary shutoff included in Pump Package
Muffler/oil trap with drain
PTO pump drive
Dual Vacuum/ PSI Gauge
Full length stat hose trays
(1) 24″ x 14″ x 12 tool box
DOT placard
Light Kit – 4 work lights and LED DOT lights
Rear step bumper
Options
Full opening rear door

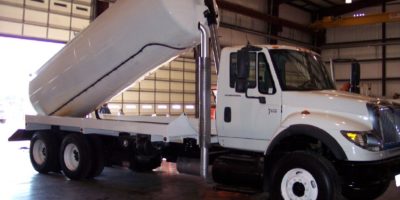

Hydraulic cylinder for rear dumping
Hydraulic driven vacuum pumps
Aluminum hose
Interior hose trays liner
Pipe tire chain bumpers
Tool box bumpers
Front bumpers
Easily installed by EMI on any chasis
Vacuum Tank kits available
Non-Code Vacuum Tank Systems 50-110 BBL
We also supply high-quality non-code vacuum tank systems.
Basic Equipment Package
Exterior Tanks are submerge arc welded
1/4″ wall, A36 Steel constructed vacuum tank
Pressure tested with full welds inside and out
3/8″ reinforced plate arc rear outlets
(2) one-piece formed baffles
(1) 20″ top manway
(1) 20″ top manway with a 12″ primary
(1) 24″ L X 12″ D tool box
(2) Exterior ladders, (1) for each manway
(2) Full length straight stringers
(2) Full length hose trays/catwalks
(4) spring and (2) solid tank mounts
Steel frame mounted rear bumper
(1) 25″ rear manway
Choice of three level indicator styles:
- Sight eyes
- Sight tube
- Rotary gauge
(2) Hose hooks
(2) 4: discharge outlets
Light Kit with work lights and DOT approved LED lights
Mud flaps
All major vacuum pumps available
Secondary, final filter and muffler for vacuum system
Relief valves for both vacuum/PSI
PTO Shaft drive Spicer #1310
Vacuum and PSI gauges
Available in 50-110 BBL tanks
Options
Vacuum pumps and blowers
Rear Valve Options:
- Heated
- Ball
- Butterfly
- Gate
Rear Bumper Options
- Tire chain style
- Tool box style
- Step style
Oilfield Front Bumper
Front Load/Unload Valves
72″ or 84″ diameter tanks
High-pressure Tri-Plex Pumps
Bowie/Roper transfer pump station
Hose Tray/Catwalk Duraliner
Epoxy coated interior finish
Aluminum hose trays
36″ rear manway
Hydraulic driven vacuum systems
Jetter system
Additional tool boxes
Dump tank
Full-open rear
Aluminum Vacuum Trailer
150 Barrel Aluminum Vacuum Trailer with Air-Ride Suspension, full catwalks with rear entrance.
Features
Shell Thickness of 1/4″
(2) Trailer heads 3/8″ thick
(3) Baffles internal dished 1/4″ pad welded
Hose tray/fender combination
(13) external rings of 5 x 2″ aluminum C-channel
(3) Top manways 20 x 6
(1) Rear manway 20 x 6
(1) Primary in front of trailer 3″ hose
2″ Rear sight tube
Partially enclosed walkway, rear entrance only
Heavy-duty Hand Rail
Ridewell Air Suspension, standard tandem
Tandem Axle Trailer 5″ tube, 25,000 lbs. capacity each
Full electrical and air system
Two-Speed landing gear
(2) Rear valves 4″ from sump pump
6,200 Gallon or 150 BBL capacity
10,880 lbs. in weight
Options
Self-contained vacuum systems: Hydraulic driven; Gas powered; Diesel powered
180 BBL
Third axle
Rear Valve Options
- Ball Valves
- Butterfly Vavles
- Gate Valves
- Air-operated Valves
Aluminum Wheels
Heavy-duty chip and cut resistant tires
Steel Vacuum Trailer
130 Barrel Steel Vacuum Trailer with Spring-Ride suspension, partial catwalks with side entrance. 16,500 lbs.
Features
Shell thickness of 1/4″
(2) Trailer heads 5/16″ thick
(3) Baffles internal dished 1/4″ pad welded
Hose tray/fender combination
(8) External rings of 3 x 1/4″ angle
(2) Top manways 20 x 6
(1) Rear manway 20 x 6
(1) Primary in front of trailer 3″ hose
2″ Rear sight tube
Partially enclosed walkway, side entrance only
Heavy-duty Hand Rail
Hutchens 9700 Spring Suspension, standard tandem
Tandem Axle Trailer 5″ tube, 25,000 lbs. capacity each
Full electrical and air system
Two-Speed landing gear
(2) Rear Valves 4″ from sump pump
5,460 Gallon or 130 BBL capacity
16,500 lbs. in weight
Options
Self-contained vacuum systems: Hydraulic driven; Gas powered; Diesel powered
150 BBL
Third axle
Rear Valve Options:
- Ball Valves
- Butterfly Valves
- Gate Valves
- Air-operated Valves
Aluminum Wheels
Heavy-duty chip and cut resistant tires
4″ Primary
